solar panel cheap price

Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: DS-M170(72)
Production Capacity: 5MW per month
Delivery Date: within 7-10 days
Brand Name: DOSOLAR
Number of Cells: 72
Color: Black
Glass: Tempered Low Iron
Backsheet: Block Humidity and Oxy Effe...
Junction Box: Flexible and Muti-Connectin...
Means of Transport: By sea air
Packing: Standard carton and pallet
Material: Monocrystalline Silicon
Size: 1580*808*45mm
Max. Power: 175
Solar Cells: High Transformation Efficie...
Frame: Aluminium Alloy
EVA: Highly Adhesive
Adhesion: Silicon Gel

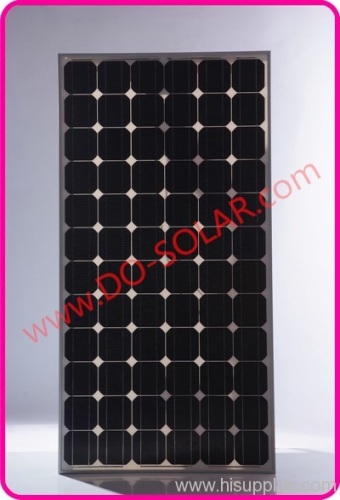

170W Monocrystalline Solar Module / Solar Panel / PV Module / PV Panel TUV/IEC/CE certified
``1. Easy to install
``2. Cheap
``3. Used widely

170W Monocrystalline Solar Module / Solar Panel / PV Module / PV Panel TUV/IEC/CE certified

FEATURES
`Long Service Life
`High Efficiency Solar Cells
`Special Aluminum Frame Design
`High Transmission, Low Iron Tempered Glass
`Advanced Cell Encapsulation

APPLICATIONS
`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications

Module
Type (72 series)
Encapsulation
Glass/EVA/Cells/EVA/TPT
Parameters
DS-M160
DS-M165
DS-M170
DS-M175
DS-M180
DS-M185
DS-M190
Max power
Pm(W)
160W
165W
170W
175W
180W
185W
190W
Tolerance
+/-3%
Open circuit voltage
Voc(V)
42.7
42.7
43.3
43.3
43.9
43.9
44.5
Short circuit current
Isc(A)
4.85
5.04
5.08
5.23
5.30
5.45
5.52
Max. power voltage
Vmp(V)
35
35
35.5
35.5
36
36
36.5
Max. power current
Imp(A)
4.57
4.71
4.79
4.93
5.0
5.14
5.21
Practical Module Efficiency
Ηc  (%)
12.5%
12.9%
13.3%
13.7%
14.1%
14.5%
14.9%
Dimensions
(L*W*H)
1580×808×45mm
Net Weight
(kg)
15.5
Max. system voltage
 (V)
1000V DC
Operate Temp. Scope
-40/+85'C
Resistance
227g steel ball fall down from 1m height and 120m/s wind
Warranty
Pm is no less 90% in 10 years and no less 80% in 25 years
STC
 (Standard Test Condition: 1000W/m2,  AM1.5, and 25'C)
